中国高铁网络结构特征及其组织模式
钟业喜(1973-),男,江西南康人,教授,博导,主要从事经济地理与空间规划研究。E-mail: zhongyexi@126.com |
收稿日期: 2019-02-01
要求修回日期: 2019-05-10
网络出版日期: 2020-03-17
基金资助
国家自然科学基金项目(41561025)
国家自然科学基金项目(41701141)
版权
High-speed Rail Network Spatial Structure and Organization Model in China
Received date: 2019-02-01
Request revised date: 2019-05-10
Online published: 2020-03-17
Supported by
National Natural Science Foundation of China(41561025)
National Natural Science Foundation of China(41701141)
Copyright
钟业喜 , 郭卫东 . 中国高铁网络结构特征及其组织模式[J]. 地理科学, 2020 , 40(1) : 79 -88 . DOI: 10.13249/j.cnki.sgs.2020.01.010

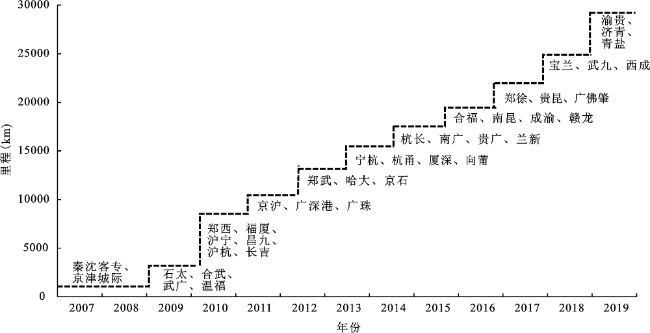

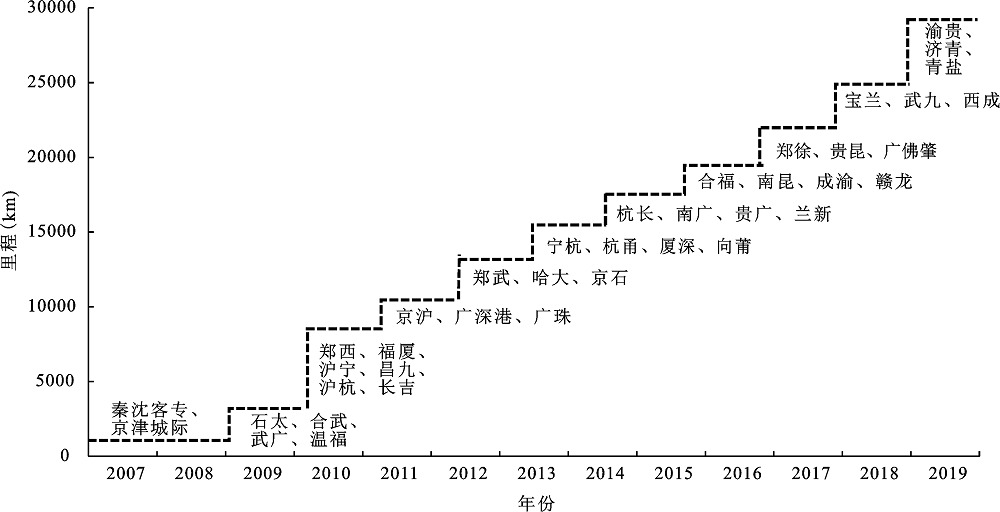

High-speed rail is an important part of modern transport infrastructure. It has an important impact on the flow of production factors, the expansion of urban space, and the reconstruction of regional spatial structure. Based on the O-D data of high-speed rail network in 2018, the social network analysis is used to discuss the structural characteristics of high-speed rail network and other organizational modes from HSR network and urban nodes. The results show that: 1) China's high-speed rail network has experienced four stages of germination, start-up, tortuous development and prosperity. China's high-speed rail network is relatively loose overall, the northeast region has the highest network density and western network density is sparse. High-speed rail links between the western region and the northeastern region are sparse. The intermediary role of the central and eastern regions in the overall network is obvious; 2) The “corridor effect” of the important high-speed rail channel is remarkable. The area along the Beijing-Shanghai high-speed railway and the Beijing-Guangzhou high-speed railway has become hot spot with high central value region. On the whole, it has a “triangular flag” composed of Beijing-Guangzhou, Beijing-Shanghai and Shanghai-Kunming high-speed railways. Spatial pattern and the trend of decreasing toward the cities on both sides. The centrality of the intermediary shows that the random distribution of the central hub city can better play a cohesive role; 3) The first-level high-speed rail network shows the high-speed rail corridors closely related to Shanghai-Nanjing Intercity, Beijing-Tianjin Intercity and Wuhan-Guangzhou High-speed Railway. The second-level network basically reveals the road network planning of China's high-speed railways and the provincial cities in the high-speed rail network as a prominent intermediary role; The third level identifies the trend of the high-speed rail network from four horizontal and vertical expand to eight horizontal and eight vertical. The fourth level of China's high-speed rail network shows overall spatial network details; 4) The territorial organization models of high-speed railway network is characterized by point-axis beading mode, dual-core grouping mode and polar core model, the perfection of the high-speed railway networkhas transformed the organizational model from a single core to a network.
表1 中国地区高铁网络密度Table 1 HSR network density in China |
东北 | 东部 | 中部 | 西部 | |
---|---|---|---|---|
东北 | 0.73 | 0.22 | 0.09 | 0.01 |
东部 | 0.22 | 0.41 | 0.34 | 0.16 |
中部 | 0.09 | 0.34 | 0.36 | 0.17 |
西部 | 0.01 | 0.16 | 0.17 | 0.26 |
注:不含港澳台基础数据。 |
[1] |
钟业喜, 黄洁, 文玉钊 . 高铁对中国城市可达性格局的影响分析[J]. 地理科学, 2015,35(4):387-395.
[
|
[2] |
黄洁, 钟业喜, 李建新, 文玉钊 . 基于高铁网络的中国省会城市经济可达性[J]. 地理研究, 2016,35(4):757-769.
[
|
[3] |
孟德友, 陈文峰, 陆玉麒 . 高速铁路建设对我国省际可达性空间格局的影响[J]. 地域研究与开发, 2011,30(4):6-10.
[
|
[4] |
姜博, 初楠臣 . 哈大高铁对区域可达性影响及空间格局演变[J]. 城市规划, 2015,39(11):92-98.
[
|
[5] |
蒋海兵, 徐建刚, 祁毅 . 京沪高铁对区域中心城市陆路可达性影响[J]. 地理学报, 2010,65(10):1287-1298.
[
|
[6] |
王姣娥, 胡浩 . 中国高铁与民航的空间服务市场竞合分析与模拟[J]. 地理学报, 2013,68(2):175-185.
[
|
[7] |
陈军 . 民航应对高铁竞争之国际经验[J]. 中国民用航空, 2010,117(9):20-21.
[
|
[8] |
丁金学, 金凤君, 王姣娥 , 等. 高铁与民航的竞争博弈及其空间效应——以京沪高铁为例[J]. 经济地理, 2013,33(5):104-110.
[
|
[9] |
肖雁飞, 张琼, 曹休宁 , 等. 武广高铁对湖南生产性服务业发展的影响[J]. 经济地理, 2013,33(10):103-107.
[
|
[10] |
姜博, 初楠臣, 王媛 , 等. 高速铁路对城市与区域空间影响的研究述评与展望[J]. 人文地理, 2016,31(1):16-25.
[
|
[11] |
王姣娥, 焦敬娟 . 中国高速铁路网络的发展过程、格局及空间效应评价[J]. 热带地理, 2014,34(3):275-282.
[
|
[12] |
初楠臣, 张平宇, 姜博 . 基于日高铁流量视角的中国高速铁路网络空间特征[J]. 地理研究, 2018,37(11):2193-2205.
[
|
[13] |
刘果, 叶堃晖 . 基于复杂网络的我国高铁演化特征研究[J]. 交通运输研究, 2017,3(3):6-13+19.
[
|
[14] |
赵映慧, 初楠臣, 郭晶鹏 , 等. 中国三大城市群高速铁路网络结构与特征[J]. 经济地理, 2017,37(10):68-73.
[
|
[15] |
金凤君 . 我国航空客流网络发展及其地域系统研究[J]. 地理研究, 2001,20(1):31-39.
[
|
[16] |
王姣娥, 景悦 . 中国城市网络等级结构特征及组织模式——基于铁路和航空流的比较[J]. 地理学报, 2017,72(8):1508-1519.
[
|
[17] |
陈伟, 刘卫东, 柯文前 , 等. 基于公路客流的中国城市网络结构与空间组织模式[J]. 地理学报, 2017,72(2):224-241.
[
|
[18] |
柯文前, 陈伟, 杨青 . 基于高速公路流的区域城市网络空间组织模式——以江苏省为例[J]. 地理研究, 2018,37(9):1832-1847.
[
|
[19] |
金凤君 . 我国航空客流网络发展及其地域系统研究[J]. 地理研究, 2001,20(1):31-39.
[
|
[20] |
戴特奇, 金凤君, 王姣娥 . 空间相互作用与城市关联网络演进——以我国20世纪90年代城际铁路客流为例[J]. 地理科学进展, 2005,24(2):80-89.
[
|
[21] |
陆大道 . 论区域的最佳结构与最佳发展——提出“点-轴系统”和“T”型结构以来的回顾与再分析[J]. 地理学报, 2001,56(2):127-135.
[
|
[22] |
陆玉麒 . 区域双核结构模式的形成机理[J]. 地理学报, 2002,57(1):85-95.
[
|
[23] |
冯兴华, 修春亮, 刘志敏 , 等. 东北地区城市网络层级演变特征分析——基于铁路客运流视角[J]. 地理科学, 2018,38(9):1430-1438.
[
|
[24] |
盛科荣, 张红霞, 佀丹丹 . 中国城市网络中心性的空间格局及影响因素[J]. 地理科学, 2018,38(8):1256-1265.
[
|
[25] |
杨文龙, 杜德斌, 游小珺 , 等. 世界跨国投资网络结构演化及复杂性研究[J]. 地理科学, 2017,37(9):1300-1309.
[
|
[26] |
段德忠, 杜德斌, 谌颖 , 等. 中国城市创新网络的时空复杂性及生长机制研究[J]. 地理科学, 2018,38(11):1759-1768.
[
|
/
〈 |
|
〉 |
